Specifications HelioWing 5
PRODUCT SPECIFICATIONS
Design standard
ASCE 7-16
Solar Roof (Gap free)
380 sq ft
Min. Drive-through Clearance
10‘ 5“
Solar Power (Max)
7.38 kWp
Material Structure
Powder Coated Steel (50 KSI)
Color Column Side Cover (customizable)
White (Semi-Gloss)
Light Control
Roof Lights (Optional) & Ambient Lights
IP67 LED strip lights
Integrated Battery Pack (optional)
36kWh
Max. Windspeed / Snow Load
156 mph / 50 psf
Width x Depth x Height
22.7 x 16.10 x 14.4 ft

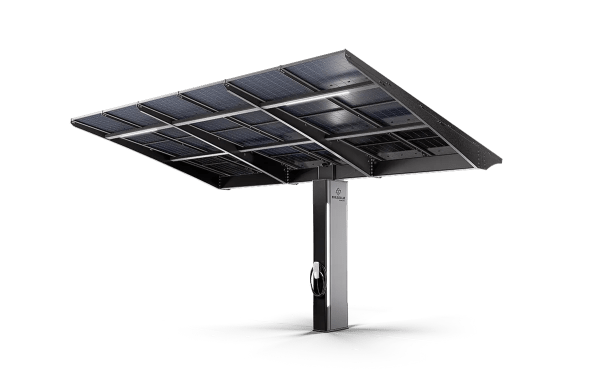

Specifications HelioWing 5 Hurricane
PRODUCT SPECIFICATIONS
Design standard
ASCE 7-16
Solar Roof (Gap free)
380 sq ft
Min. Drive-through Clearance
10‘ 5“
Solar Power (Max)
7.38 kWp
Material Structure
Powder Coated Steel (100 KSI)
Color Column Side Cover
Marine Battleship Grey (Mat)
Light Control
Roof Lights (Optional) & Ambient Lights
IP67 LED strip lights
Integrated Battery Pack (optional)
36kWh
Max. Windspeed / Snow Load
175 mph / 60 psf
Width x Depth x Height
22.7 x 16.10 x 14.4 ft

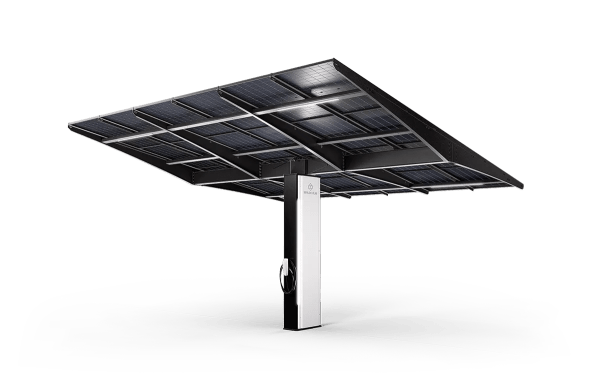

Specifications HelioWing 7
PRODUCT SPECIFICATIONS
Design standard
ASCE 7-16
Solar Roof (Gap free)
500 sq ft
Min. Drive-through Clearance
9‘ 6“
Solar Power (Max)
9.84 kWp
Material Structure
Powder Coated Steel (50 KSI)
Color Column Side Cover (customizable)
White (Semi-Gloss)
Light Control
Roof Lights (Optional) & Ambient Lights
IP67 LED strip lights
Integrated Battery Pack (optional)
36kWh
Max. Windspeed / Snow Load
156 mph / 50 psf
Width x Depth x Height
22.7 x 22.4 x 13.10 ft

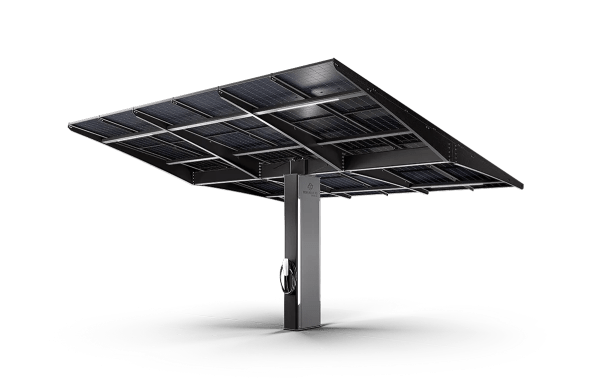

Specifications HelioWing 7 Hurricane
PRODUCT SPECIFICATIONS
Design standard
ASCE 7-16
Solar Roof (Gap free)
500 sq ft
Min. Drive-through Clearance
9‘ 6“
Solar Power (Max)
9.84 kWp
Material Structure
Powder Coated Steel (100 KSI)
Color Column Side Cover
Marine Battleship Grey (Mat)
Light Control
Roof Lights (Optional) & Ambient Lights
IP67 LED strip lights
Integrated Battery Pack (optional)
36kWh
Max. Windspeed / Snow Load
175 mph / 60 psf
Width x Depth x Height
22.7 x 22.4 x 13.10 ft
Specifications LumaPort 5
PRODUCT SPECIFICATIONS
Minimum System Size
12 kWp (2 Columns, 5 Wing Segments)
Output per Wing Segment
2.40 kWp
Wing Segment Width
7.5‘
Wing Segment Covered Depth
16.9‘
Min. Drive-through Clearance
11‘
Wing Segment Tilt Angle
10 degrees
Material Structure
Powder Coated Steel (50 KSI)
Color Column Side Cover (customizable)
White (Semi-Gloss)
Light Control
Motion sensor and control box
Roof Lights (Optional) & Ambient Lights
IP67 LED strip lights
Integrated Battery Packs (optional)
72 kWh (per column)
Max. Windspeed / Snow Load
156 mph / 50 psf
Specifications LumaPort 7
PRODUCT SPECIFICATIONS
Minimum System Size
16 kWp (2 Columns, 5 Wing Segments)
Output per Wing Segment
3.20 kWp
Wing Segment Width
7.5‘
Wing Segment Covered Depth
22.3‘
Min. Drive-through Clearance
9.5‘
Wing Segment Tilt Angle
10 degrees
Material Structure
Powder Coated Steel (50 KSI)
Color Column Side Cover (customizable)
White (Semi-Gloss)
Light Control
Roof Lights (Optional) & Ambient Lights
IP67 LED strip lights
Integrated Battery Packs (optional)
72 kWh (per column)
Max. Windspeed / Snow Load
156 mph / 50 psf
Specifications LumaPort 10
PRODUCT SPECIFICATIONS
Minimum System Size
24 kWp (2 Columns, 5 Wing Segments)
Output per Wing Segment
4.80 kWp
Wing Segment Width
7.5‘
Wing Segment Covered Depth
33.8‘
Min. Drive-through Clearance
9.7‘
Wing Segment Tilt Angle
7 degrees
Material Structure
Powder Coated Steel (50 KSI)
Color Column Side Cover (customizable)
White (Semi-Gloss)
Light Control
Roof Lights (Optional) & Ambient Lights
IP67 LED strip lights
Integrated Battery Packs (optional)
72 kWh (per column)
Max. Windspeed / Snow Load
156 mph / 50 psf
