Become energy independent in style – with LumaPort
Take full control of your businesses’ utility costs and cut them almost entirely. Replace dependency on a fragile grid, haunted by outages and rising utility costs, with your own, resilient and autonomous powerplant. So you can always keep your systems running reliably.
LumaPort combines unmatched versatility and functionality with a premium product presentation that catches the eyes of any passersby and customers alike. Make your business or community energy resilient and futureproof in the best looking way.
ONE UNIFIED SYSTEM
Produce Energy

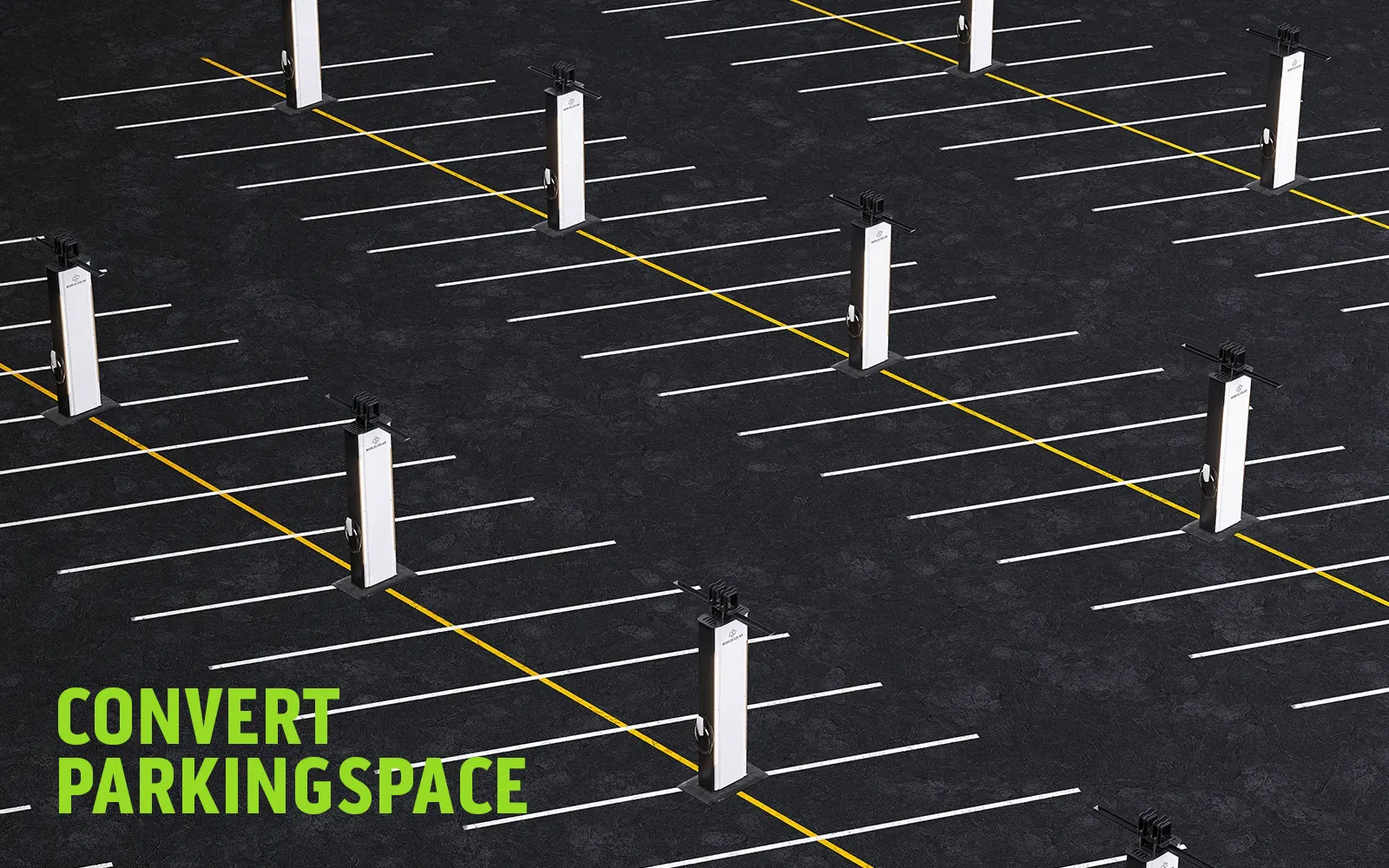

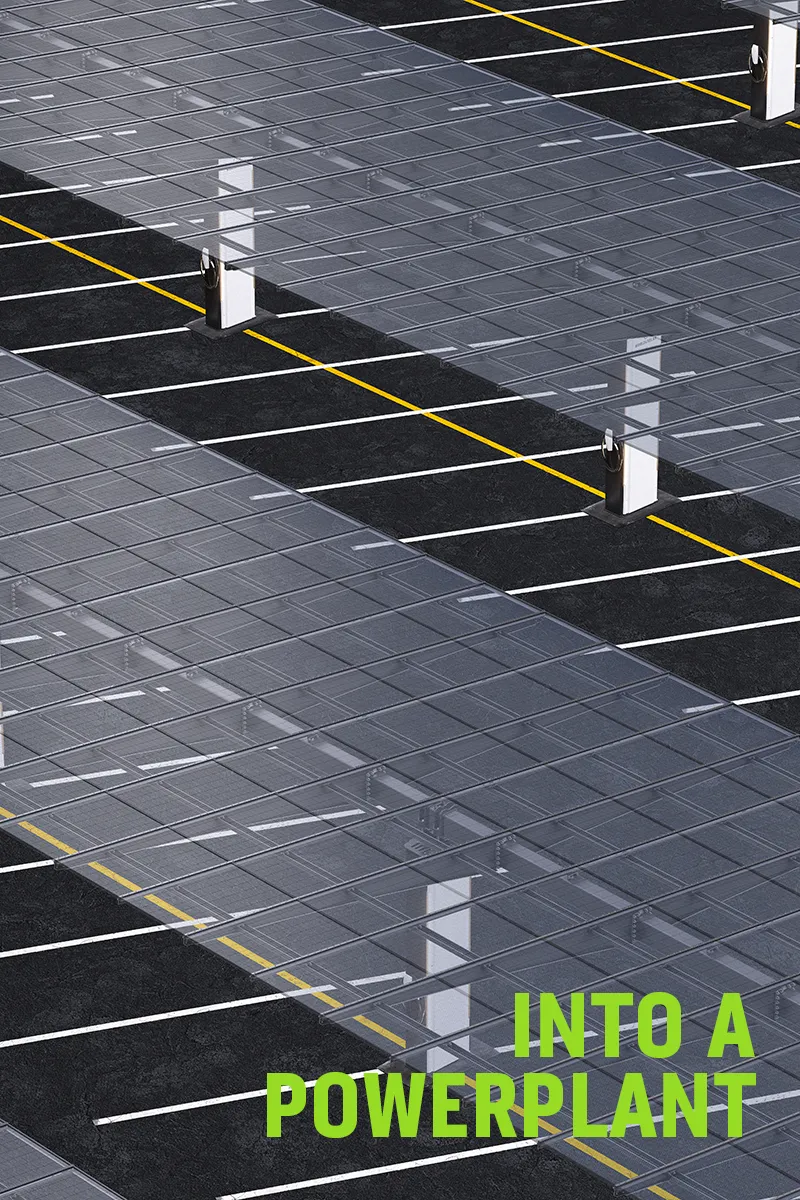

Convert any available space into a powerplant. Harness the abundant energy of the sun to erase your utility costs and make your business sustainable.
STore Energy
With built-in battery storage available, you can use your produced energy whenever you want and have a reliable backup available during outages to keep essential systems running.
Distribute Energy
Thanks to hybrid inverters, you have many options to use your energy. Power your business or community directly, store it as emergency backup, charge EVs or sell it to the grid.
MATCH YOUR SPACE PERFECTLY
Being able to place columns of a canopy PV system freely along a given line is revolutionary to the industry. Imposing a minimal footprint on your site of installation, gives you maximum flexibility to match a LumaPort system to your individual, spatial requirements. Varying distances between columns are possible and you can decide to reduce the amount of columns to save costs or use more columns to benefit from their integrated components, like batteries, inverters or built-in EV chargers.
far more
than just solar
LumaPort combines the full functionality of a PV system with many, sophisticated features that make it superior to conventional solar canopies or roof solar. It is fully up to you which features you want to be integrated to suit your needs perfectly thanks to our modular system design.
The most versatile Energy Solution for commercial applications
A Unified System
The LumaPort, similar to the prior released HelioWing residential system, is a unified system that combines everything in a single unit: Inverters, EV chargers and 72kWh batteries, along with optional LED lights come integrated and preinstalled. Produce, store and distribute energy from the same, single system without clunky exterior boxes or running cables.
Design Freedom
While conventional solar carrier systems use columns solely to ensure the structural integrity, for World4Solar solutions, the columns are the heart of the system, housing all the electrical components and battery storage. You can place columns freely to suite your parking layout with minimal restrictions due to wind resistance. Use more columns to maximize your energy storage and structural integrity or go with fewer columns to minimize costs – It’s your choice!
A Modular System
LumaPort essentially works like large-scale LEGO – you just stack up segments in a row until your desired space is covered in solar. All segments are interconnected with each other to use the full potential of your energy production. LumaPort segments come in 3 different base sizes to perfectly fit any parking lot layout.
Easy Installation
As a series-produced system, LumaPort is fast and easy to install and shortens the project planning process a lot by erasing custom design adjustments, required with conventional systems. The installation process is the same for every system, saving time and reducing potential errors. Adding World4Solar’s detailed, upfront project design reports, U.S.-nationwide permitting service and on-site installation supervision, your system will be up and running in no time.
Specifications LumaPort 5
PRODUCT SPECIFICATIONS
Minimum System Size
12 kWp (2 Columns, 5 Wing Segments)
Output per Wing Segment
2.40 kWp
Wing Segment Width
7.5‘
Wing Segment Covered Depth
16.9‘
Min. Drive-through Clearance
11‘
Wing Segment Tilt Angle
10 degrees
Material Structure
Powder Coated Steel (50 KSI)
Color Column Side Cover (customizable)
White (Semi-Gloss)
Light Control
Motion sensor and control box
Roof Lights (Optional) & Ambient Lights
IP67 LED strip lights
Integrated Battery Packs (optional)
72 kWh (per column)
Max. Windspeed / Snow Load
156 mph / 50 psf
PRODUCT SPECIFICATIONS
Minimum System Size
12 kWp (2 Columns, 5 Wing Segments)
Output per Wing Segment
2.40 kWp
Panels per Wing Segment
6
Wing Segment Width
7.5‘
Wing Segment Covered Depth
16.9‘
Min. Drive-through Clearance
11‘
Wing Segment Tilt Angle
10 degrees
Material Structure
Powder Coated Steel (50 KSI)
Color Column Side Cover (customizable)
White (Semi-Gloss)
Light Control
Motion sensor and control box
Roof Lights (Optional) & Ambient Lights
IP67 LED strip lights
Integrated Battery Packs (optional)
72 kWh (per column)
Max. Windspeed / Snow Load
156 mph / 50 psf
Specifications LumaPort 7
PRODUCT SPECIFICATIONS
Minimum System Size
16 kWp (2 Columns, 5 Wing Segments)
Output per Wing Segment
3.20 kWp
Wing Segment Width
7.5‘
Wing Segment Covered Depth
22.3‘
Min. Drive-through Clearance
9.5‘
Wing Segment Tilt Angle
10 degrees
Material Structure
Powder Coated Steel (50 KSI)
Color Column Side Cover (customizable)
White (Semi-Gloss)
Light Control
Motion sensor and control box
Roof Lights (Optional) & Ambient Lights
IP67 LED strip lights
Integrated Battery Packs (optional)
72 kWh (per column)
Max. Windspeed / Snow Load
156 mph / 50 psf
PRODUCT SPECIFICATIONS
Minimum System Size
16 kWp (2 Columns, 5 Wing Segments)
Output per Wing Segment
3.20 kWp
Panels per Wing Segment
8
Wing Segment Width
7.5‘
Wing Segment Covered Depth
22.3‘
Min. Drive-through Clearance
9.5‘
Wing Segment Tilt Angle
10 degrees
Material Structure
Powder Coated Steel (50 KSI)
Color Column Side Cover (customizable)
White (Semi-Gloss)
Light Control
Motion sensor and control box
Roof Lights (Optional) & Ambient Lights
IP67 LED strip lights
Integrated Battery Packs (optional)
72 kWh (per column)
Max. Windspeed / Snow Load
156 mph / 50 psf
Specifications LumaPort 10
PRODUCT SPECIFICATIONS
Minimum System Size
24 kWp (2 Columns, 5 Wing Segments)
Output per Wing Segment
4.80 kWp
Wing Segment Width
7.5‘
Wing Segment Covered Depth
33.8‘
Min. Drive-through Clearance
9.7‘
Wing Segment Tilt Angle
7 degrees
Material Structure
Powder Coated Steel (50 KSI)
Color Column Side Cover (customizable)
White (Semi-Gloss)
Light Control
Motion sensor and control box
Roof Lights (Optional) & Ambient Lights
IP67 LED strip lights
Integrated Battery Packs (optional)
72 kWh (per column)
Max. Windspeed / Snow Load
156 mph / 50 psf
PRODUCT SPECIFICATIONS
Minimum System Size
24 kWp (2 Columns, 5 Wing Segments)
Output per Wing Segment
4.80 kWp
Panels per Wing Segment
12
Wing Segment Width
7.5‘
Wing Segment Covered Depth
33.8‘
Min. Drive-through Clearance
9.7‘
Wing Segment Tilt Angle
7 degrees
Material Structure
Powder Coated Steel (50 KSI)
Color Column Side Cover (customizable)
White (Semi-Gloss)
Light Control
Motion sensor and control box
Roof Lights (Optional) & Ambient Lights
IP67 LED strip lights
Integrated Battery Packs (optional)
72 kWh (per column)
Max. Windspeed / Snow Load
156 mph / 50 psf
